Mr Harry

The Adventure Bicycle

This is our first step away from the fatbike as we look to offer frames that are more ride specific, in this case bikepacking/adventure riding.

As mentioned before, all of our frames are born from riders seeing a way to meet the demands of a type of riding. Our team rider Andy Deacon has achieved so much in a short time on His BowTi fatbike and this has been partially down to him switching wheels on occasions to take part on cross country races, long distance rides and so on.

So after a few conversations the idea for a more dedicated frames came about.

Read on below...



Say hello to "Mr Harry"

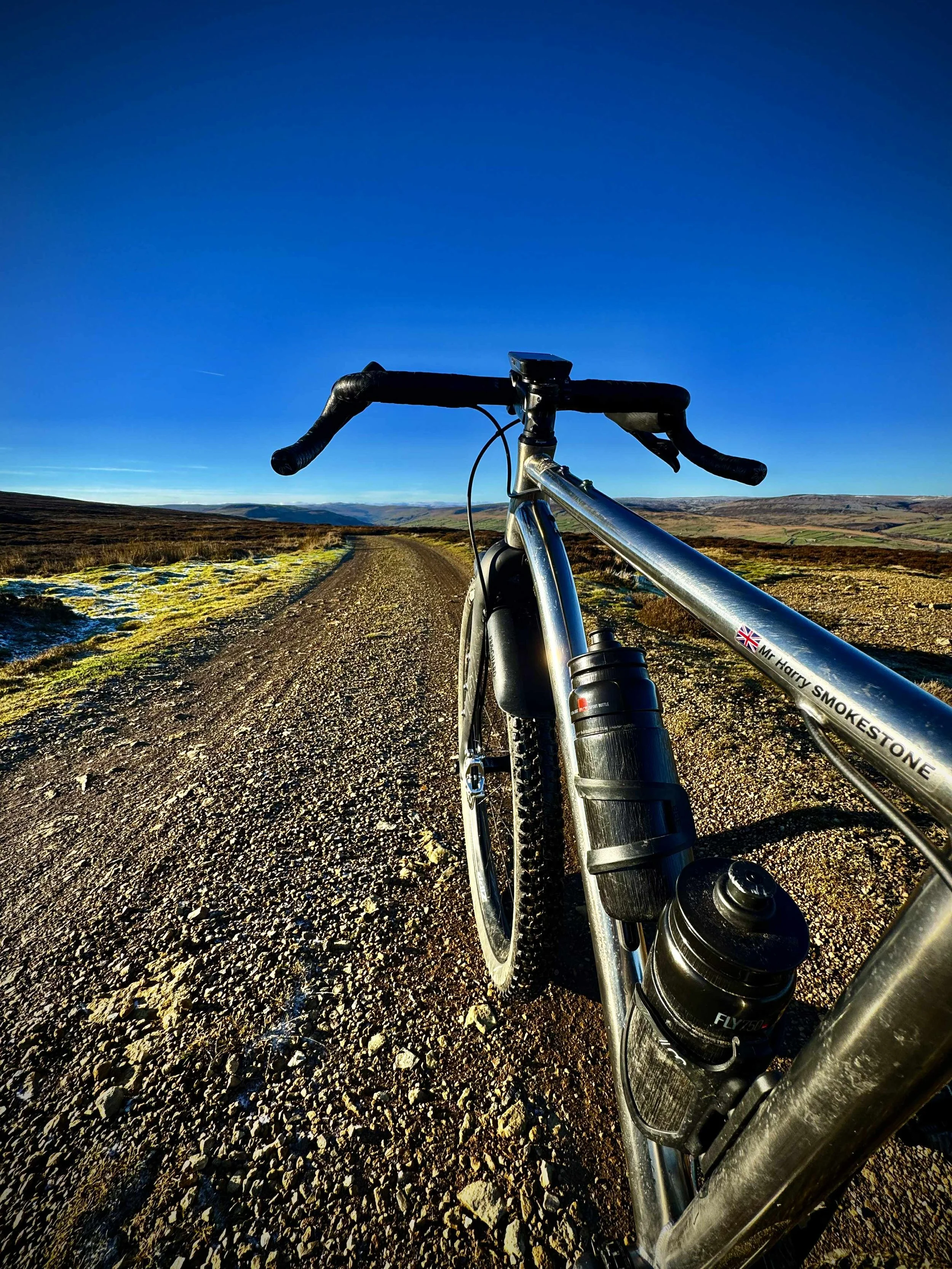

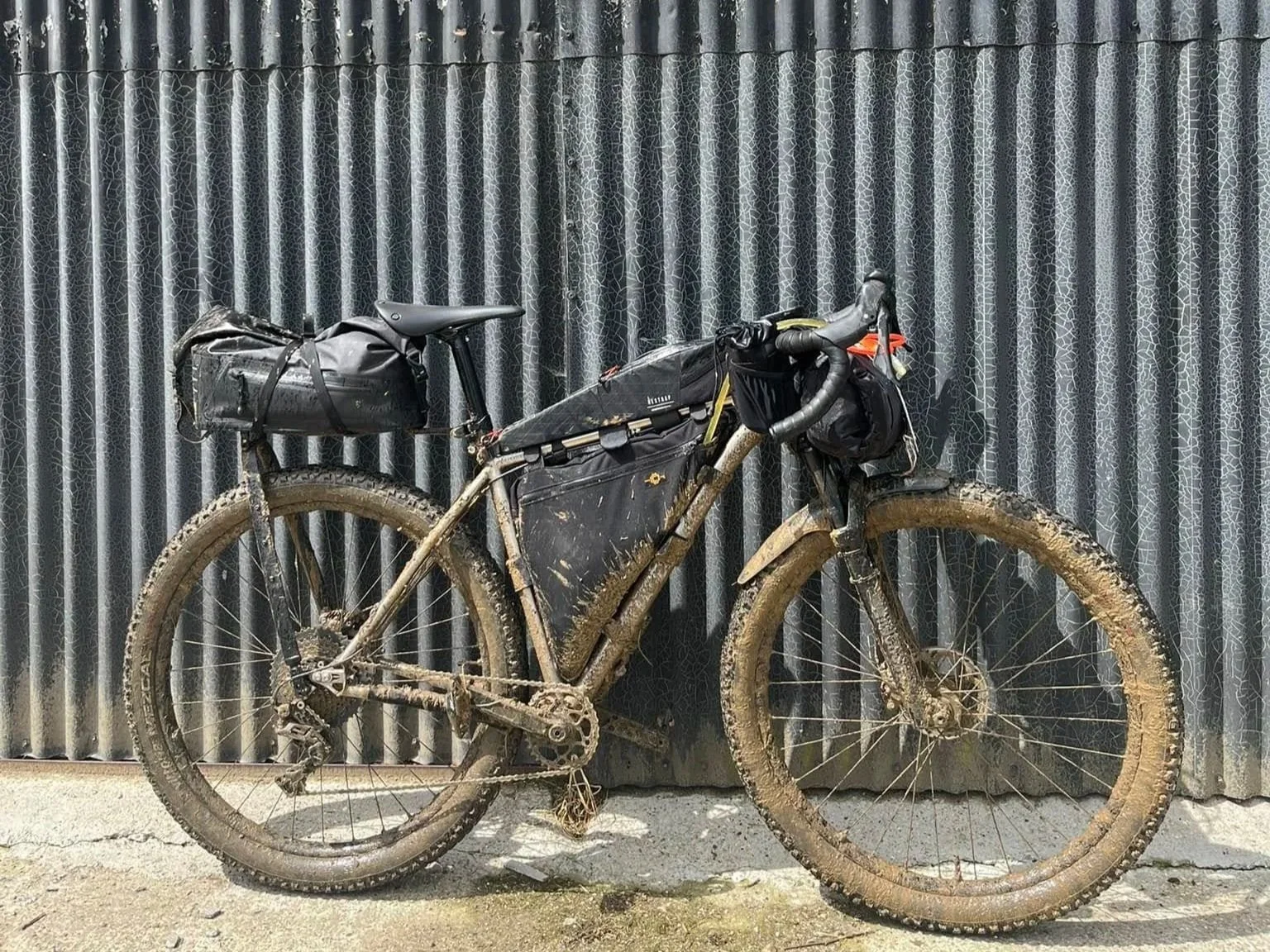

Mr Harry is designed to take you on long journeys discovering great places in style and comfort as well as thrashing through your local cross country trails.
We opted not follow the 650b gravel trend but stick with 29" wheels delivering mile munching comfort and also catering for tyres from 29 x 2.8 down or 700c tyres of your choice.
We opted to include features such as boost axle spacing to offer great mud clearance, dropper post cable routing, pannier rack mounts, and the ability to fit a 100mm suspension fork.

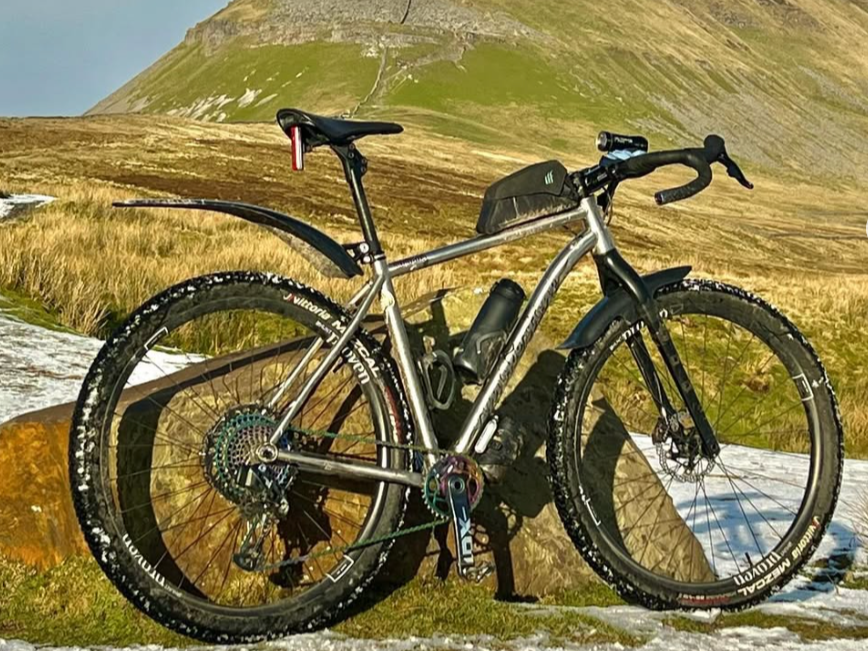

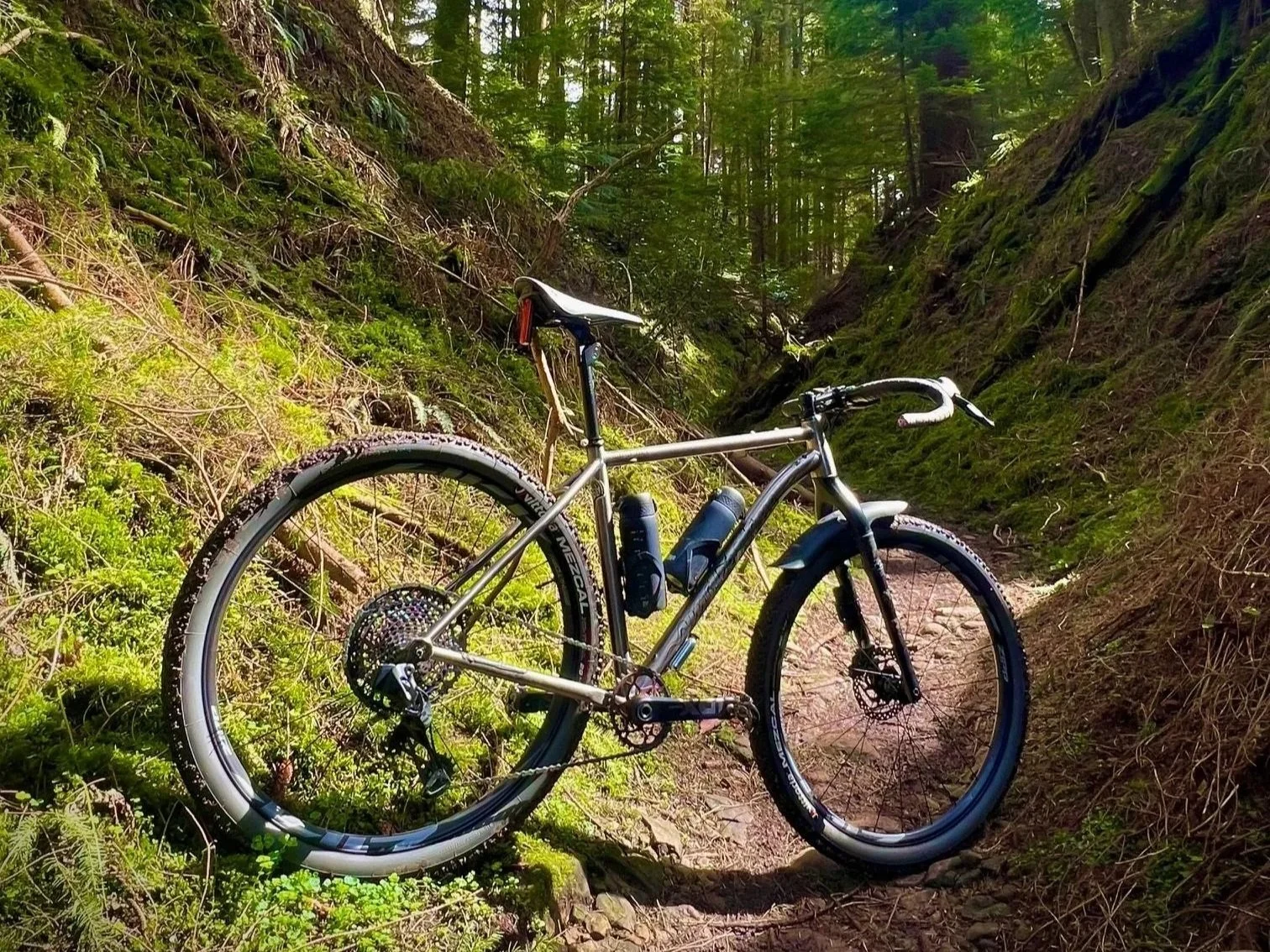

The bike featured in these images cost £3,800. with the frame only costing £1600. As with all our bikes you can offer alternative specifications or part builds

Mr.Harry 5.jpg

Mr.Harry 5.jpg

Mr.Harry 7.jpg

Mr.Harry 7.jpg

Mr.Harry 6.jpg

Mr.Harry 6.jpg

Mr. Harry 1.jpg

Mr. Harry 1.jpg

Mr.Harry 3.jpg

Mr.Harry 3.jpg

Mr.Harry 4.jpg

Mr.Harry 4.jpg


Mr Harry logo.jpg


Mr Harry GRX - £4,500.00

Components

Bike image not to spec.

  • Fork - Salsa Firestarter 110 Deluxe

  • Headset - Hope IS42/IS52

  • Stem - Genetic STV Road

  • Bars - Whisky No.7 24F Drop Bar

  • Bar Tape - Genetic - Silicone

  • Brakes - GRX RX600 Hydraulic

  • Rotor - Shimano SLX 160mm

  • Chain - SRAM

  • Cranks - Hope Evo

  • Chain Ring - Hope spiderless Boost oval 36t (Optional size)

  • Bottom Bracket - Hope 30mm

  • Hubs - Halo Boost, Superdrive.

  • Spokes - DT comp black

  • Rims - Halo Vapour 35 x 29"

  • Tyres - Vittoria Mezcal 29 x 2.3 setup tubeless

  • Seat Post - Genetic SL400 Seat Post - Black

  • Saddle - Prologo Dimension T4.0 143 Blk



Frame, fork options

Frame Only £1900

Full details above

FIRESTARTER 110 DELUXE FORK

Firestarter 110 Deluxe is our high-modulus carbon fork for all-terrain riding. Dual sets of Three-Pack mounts on each leg give you room for water or Anything Cages, and mid-blade mounts accommodate racks for panniers. This fork is light, tough, and ultra-versatile with the capacity to fit a wide range of tire sizes.

  • High-modulus carbon fiber construction

  • Tapered 1-1/8" to 1-1/2" steerer tube

  • Axle-to-crown: 483mm

  • Fork rake: 51mm

  • 110 x 15mm thru-axle

  • 160mm minimum rotor size; 180mm maximum rotor size

  • 27.5 x 2.8–3.0" or 29 x 2.2–3.0" tire fit

  • Dual sets of Three-Pack mounts on each fork leg for Anything Cages or water bottles

  • Mid-blade mounts for low rider racks

  • Internal routing for 110 boost dynamo hubs

  • Fender mounts (compatible with 29 x 2.2" tire maximum)

Lauf TR Boost 29er fork, Upgrade

The Lauf TR Boost is a unique match with today’s lightweight XC mountain bike frames. Nimble, light and ready for adventure.

Zero Maintenance

The design of the Lauf TR Boost is based around eliminating all “moving parts”, and therefore, friction and maintenance. The monocoque carbon fiber structure delivers incredible strength, and the test-fork we have in our lab has already been “shocked” over 170 thousand times, without showing any signs of wear and tear. That equals more mountain-biking than you’ll manage to cram into at least 5 years of action!

S2 Springs

The springs on the Lauf forks are made of military spec S2 glassfiber that is extremely tough on hits and flexible in the direction of the travel. The springs have been “shocked” in our test lab over 400.000 times reaching 40mm amplitude every time.

WEIGHT

1.000 g / 2.2 lbs

The TR Boost is very light - especially when compared to other boost forks. Be prepared to lift your front wheel over rocks instead of navigating past. The TR Boost is 1.000g.


Ole Smokey.jpg


Technical

The things you need to know.

  • Material: - Titanium grade 9 (3Al/2.5V)

  • Headset Size: -   Top cup = IS 42  , Lower cup = IS 52

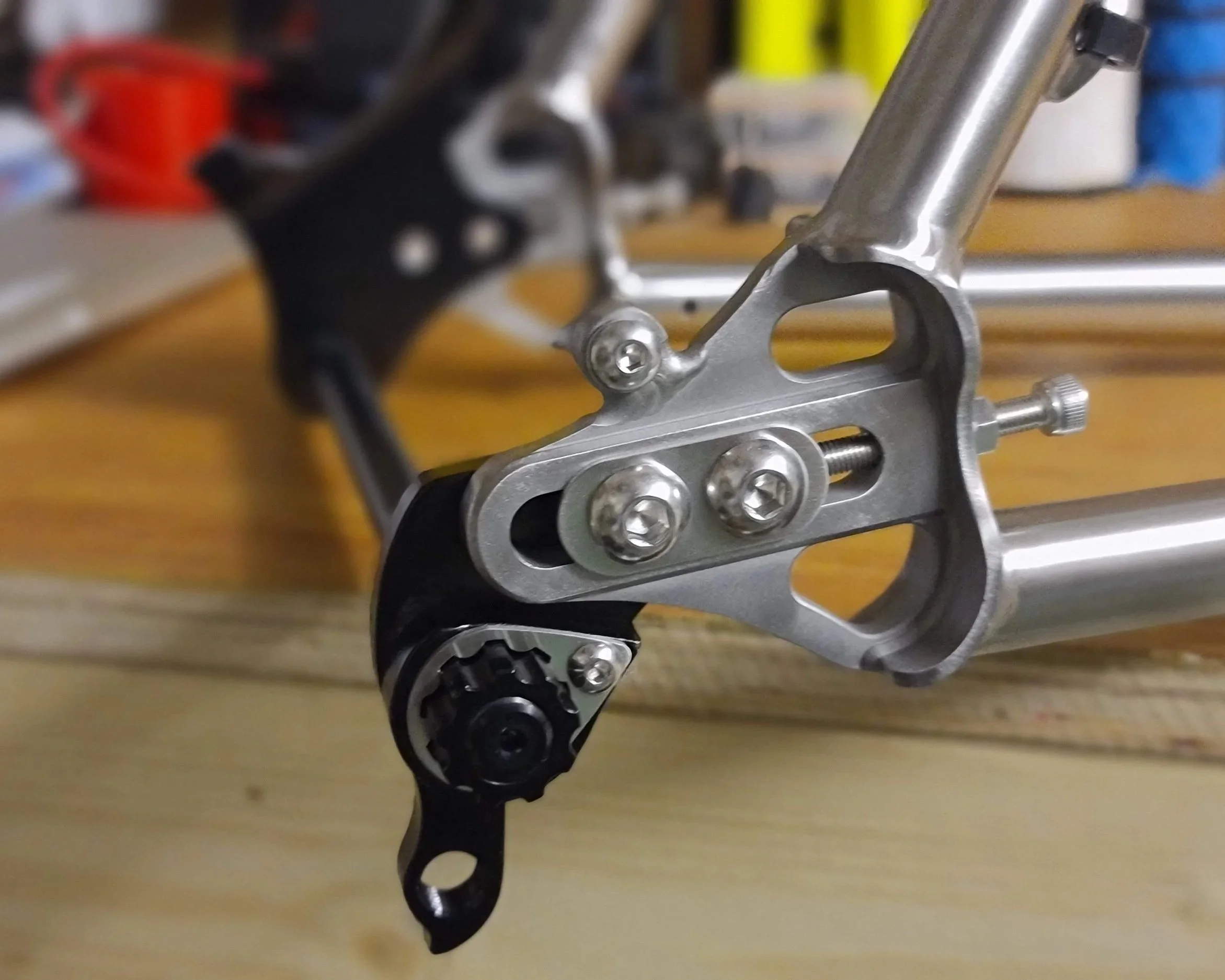

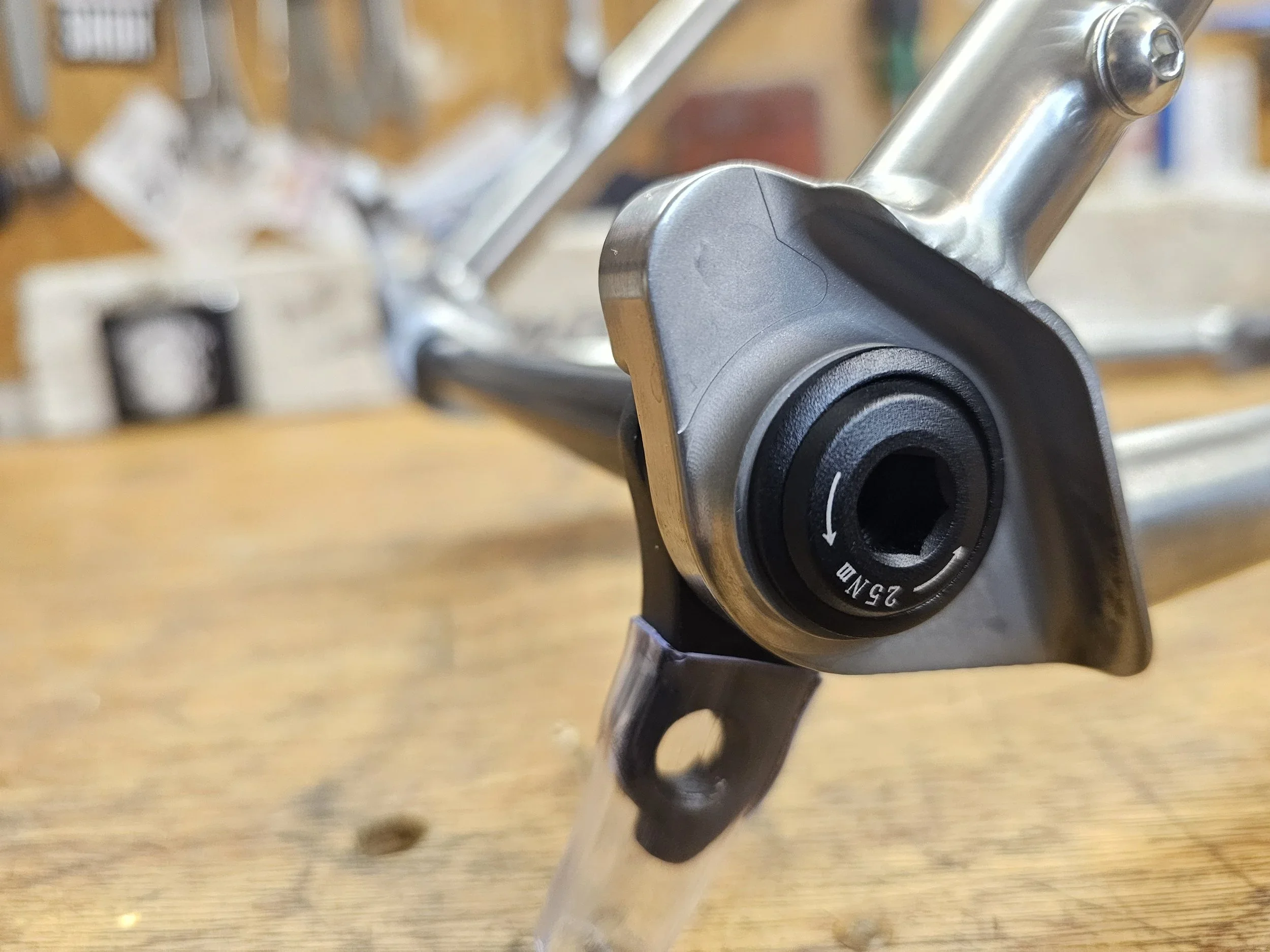

  • Rear Axle: -   12 x 148mm bolt through.

  • Seat Post Size:  -   31.6mm

  • Seat Clamp Size: - 34.9mm (Included)

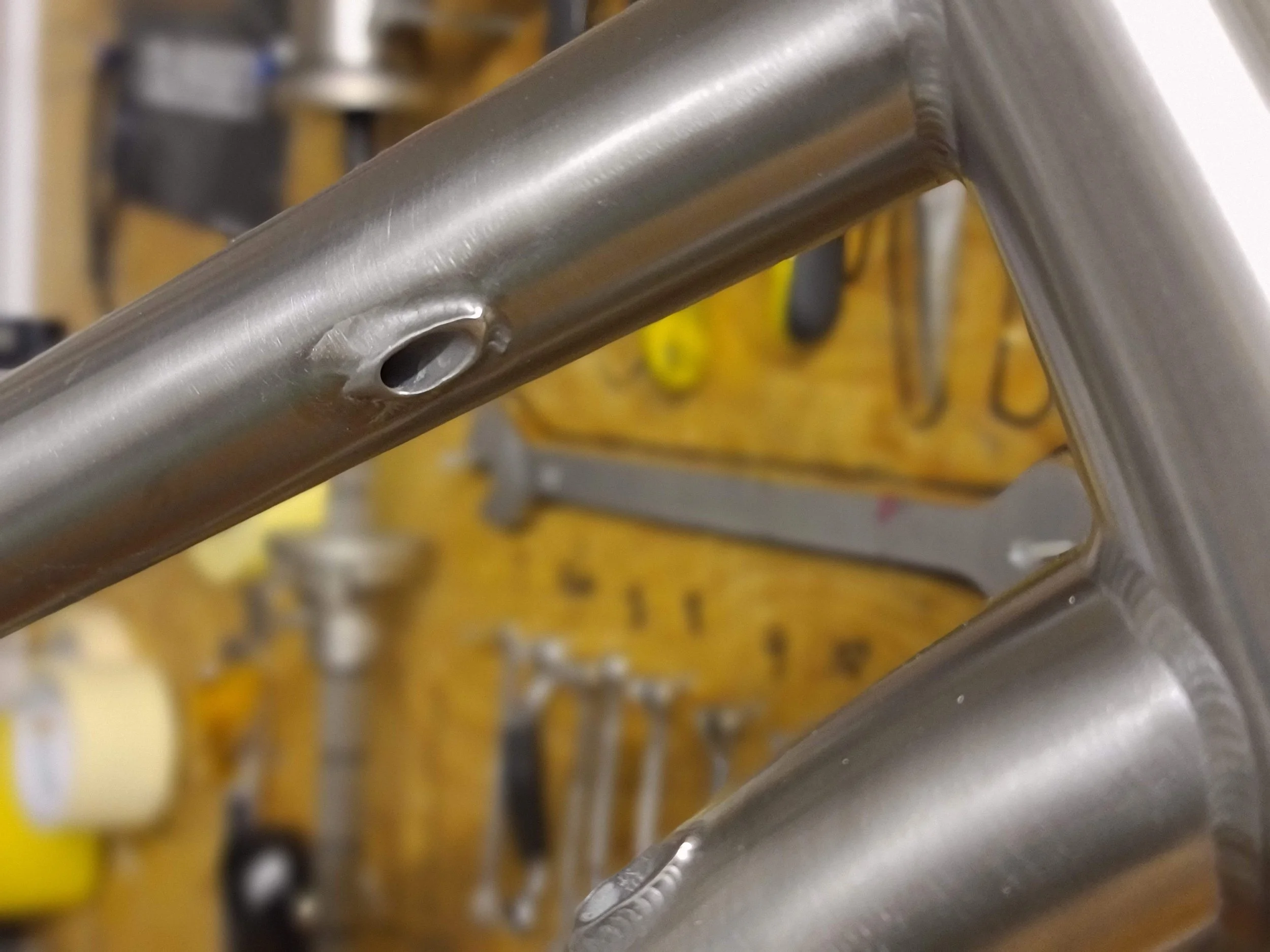

  • Dropper Post:  -  Internal Stealth cable routing

  • Sizes:  -  XSmall, Small, Medium, Large, XLarge.

Warranty - 5 years for the original owner.

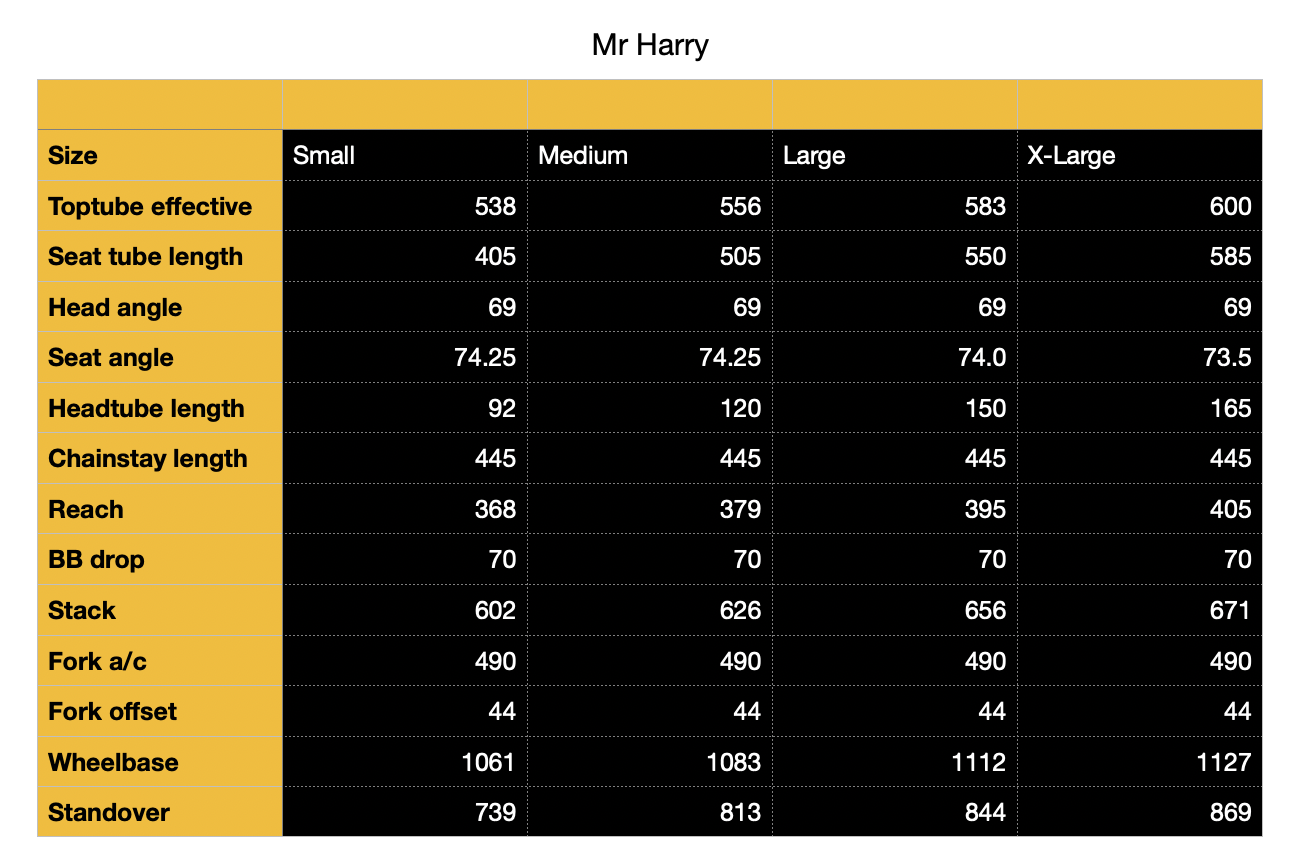

Geometry



Versatility

Mr Harry has been designed to offer several tyre options making this bike very versatile.

All of the tyres below have been fitted on the same wheels, 29 Halo Vapour 35's, which are 30mm internal, 35 outer.

You can of course choose your rim/wheels.

29 x 2.8 tyres

29 x 2.25 tyres

700 x 40 tyres



Useful Info

What fits what

We are a great believer in keeping things simple, try and use standards that exist and components that you can get in most bike shops.

Bottom bracket type

We use a proper British threaded bottom bracket suitable for all type of crank. The width is 73mm. You can fit 24mm, 30mm and the new DUB axle size cranks with the suitable threaded bottom bracket.

Headset type

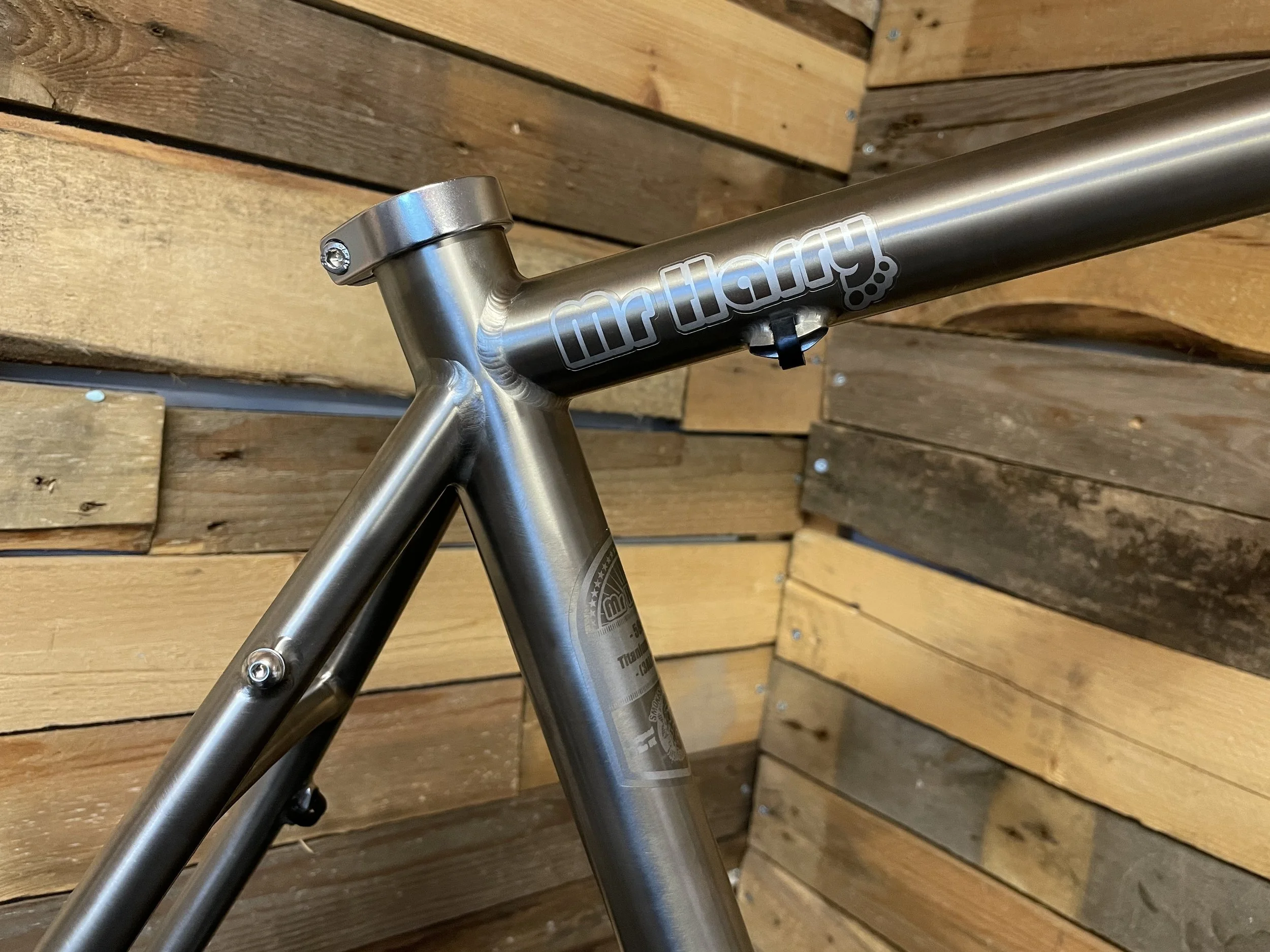

Integrated headset size IS42 top and IS52 lower. This type of headset does not require cups to be pressed into the frame as the bearings sit directly into the frame.



How to buy

Visit us in Store at Slam69
We recommend getting perfectly sized up, before purchasing your Smokestone Frame or Build.

You’re welcome to visit us anytime; demo bikes are available for car park tests or hire them out for a day.
